Multi-spectrum IR5 flame detection with long-range performance

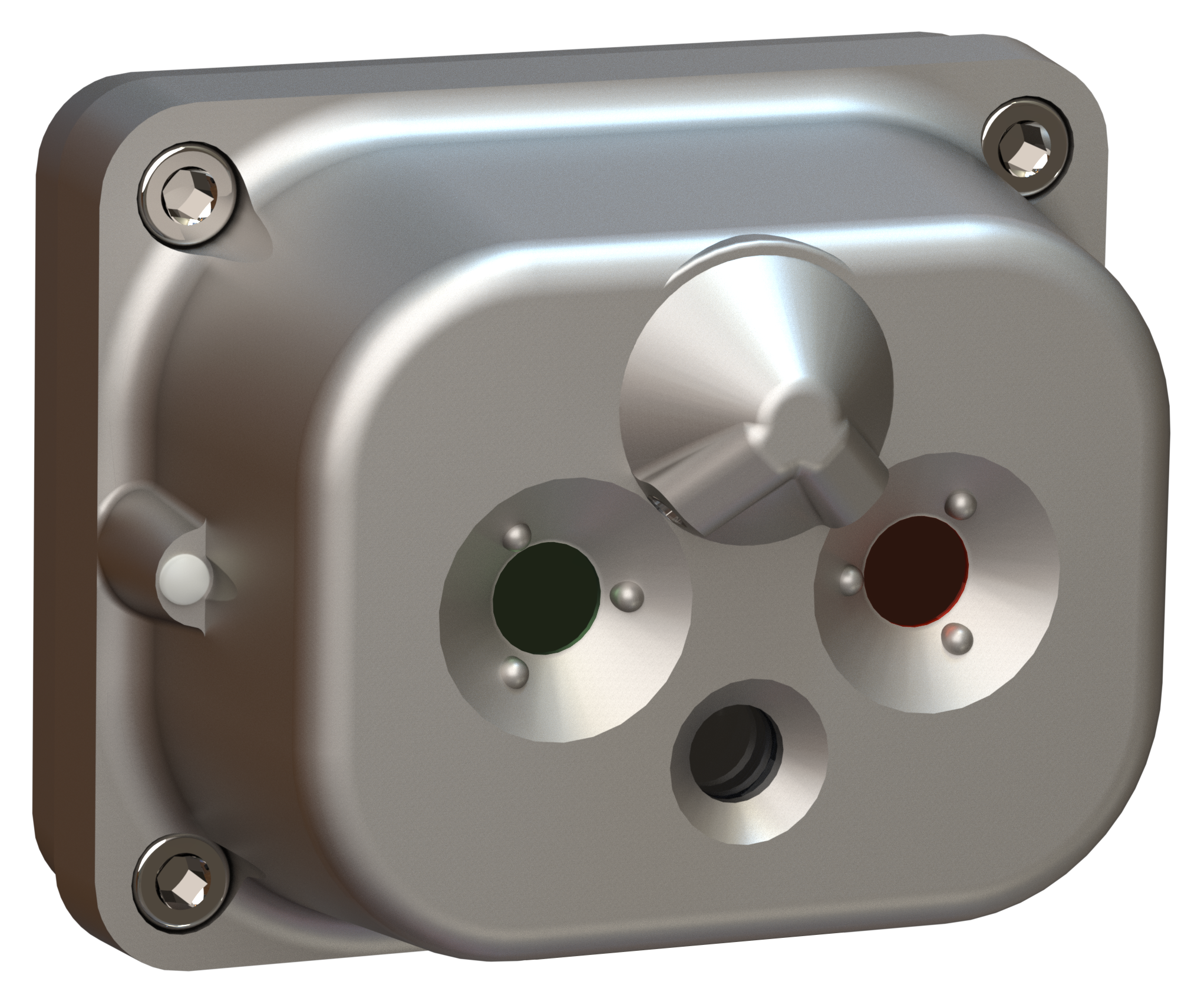

Omniguard® model 760 Multi-spectrum Infrared Flame Detector
The Omniguard model 760 multi-spectrum infrared flame detector senses five discrete infrared wavelengths for early fire detection. It uses the patented Fire Event Analysis algorithm for strong false-alarm immunity and is suited for refineries, pipelines, production platforms, power plants, compressor stations, LNG/LPG facilities, tank farms, hangars, and petrochemical plants.
- Patented Fire Event Analysis algorithm
- Five discrete infrared wavelengths
- 90-degree field of view
- Long-distance sensitivity modes
- Automatic through-the-lens self-test
Specifications
Key performance and electrical/mechanical specifications for Model 760
Performance
| Flame types detected | Hydrocarbon and non-hydrocarbon flames. |
| Normal sensitivity | 1 sq ft gasoline or n-Heptane fire at 75 ft in less than 1 second. |
| Enhanced sensitivity | 1 sq ft gasoline or n-Heptane fire at 100 ft in less than 1 second. |
| Long-distance sensitivity | 1 sq ft gasoline or n-Heptane fire at 200 ft in less than 1 second. |
| Horizontal field of view | 90 degrees. |
Optical response
| Spectral response | Infrared peak sensitivities of 2.2 um, 2.9 um, 3.7 um, 4.4 um, and 5.8 um. |
| Detection algorithm | Patented Omniguard Fire Event Analysis (FEA) algorithm. |
| Self-test | Automatic through-the-lens diagnostic self-test. |
Electrical
| Supply voltage | Nominal 24 VDC, range 20-30 VDC. |
| Power consumption | Standby 33 mA; standby 4-20 mA 38 mA; fire alarm 47 mA; auto test 75 mA; manual test 94 mA. |
| Interfaces | Two fire/trouble relays, 0-20 mA current loop, and RS485 MODBUS RTU. |
Operating limits
| Operating temperature | -40C to +85C. |
| Operating humidity | 0-95% RH non-condensing, withstands up to 100% RH for short periods. |
Mechanical
| Dimensions (H x W x D) | 114 x 140 x 125 mm. |
| Weight | 2.4 kg aluminum; 6.3 kg stainless steel. |
| Conduit entry | 3/4-14 NPT or M20-1.5. |
| Housing materials | Aluminum or stainless steel. |
Configuration
| Model | 760 |
| Product type | Multi-spectrum infrared flame detector |
| Product type definition | Flame Detectors (flame) |
| Ordering format | [MODEL]-X X X X X |
| Fire type | 0 – Hydrocarbon/non-hydrocarbon |
| Housing material/conduit entry | 0 – Aluminum, 3/4-14 NPT (white); 2 – Stainless steel, 3/4-14 NPT; 3 – Aluminum, M20-1.5 (white); 5 – Stainless steel, M20-1.5 |
| Test feature | 1 – Auto self-test |
| Fire relay configuration | 0 – Latching; 1 – Non-latching |
| Approvals | 0 – FM, CSA, IECEx, ATEX, SIL2, UKCA, ECAS-Ex, PESO, CE, EMC, LVD |
Why Model 760
Model 760 product highlights
IR5 flame detection
Senses infrared radiation in five discrete wavelengths for early detection of hydrocarbon and certain non-hydrocarbon fires.
False-alarm immunity
The patented Fire Event Analysis algorithm helps distinguish real fire events from non-fire sources.
Long-distance sensitivity
Supports normal, enhanced, and long-distance sensitivity modes for demanding coverage requirements.
90-degree field of view
Provides a 90-degree horizontal field of view for broad area coverage.
Through-the-lens self-test
Automatic self-test monitors detector sensing performance and reports fault conditions when impaired.
Rugged housing
Weatherproof, explosion-proof enclosure supports indoor and outdoor industrial use.
Field-configurable outputs
Relays, sensitivity, and output behavior can be configured for site requirements.
Global approvals
Approved for regulated and hazardous areas, including FM, CSA, IECEx, ATEX, SIL2, UKCA, ECAS-Ex, and PESO.
Warranty coverage
Includes five-year sensor warranty and three-year component/manufacturing defect warranty from date of delivery.
Industrial applications
Designed for refineries, tank farms, production platforms, compressor stations, hangars, and petrochemical plants.
Accessories
Mounting, shields, and add-ons to fit your installation environment.
-
Swivel mount for all Aluminum 660/760/860 Flame detectors
Material: Stainless Steel 304
Part number: 20856 -
Swivel mount for all Stainless Steel 660/760/860 Flame detectors
Material: Stainless Steel 316
Part number: 24784 -
Test Gun for all 660/760/860 Flame Detectors
Part number: 545
Applications
Typical installation environments for Model 760
Ready to configure Model 760?
Use the configurator to choose the right version and options for your site, then request a quote.
