Flame products

Model 660 - UV flame detector

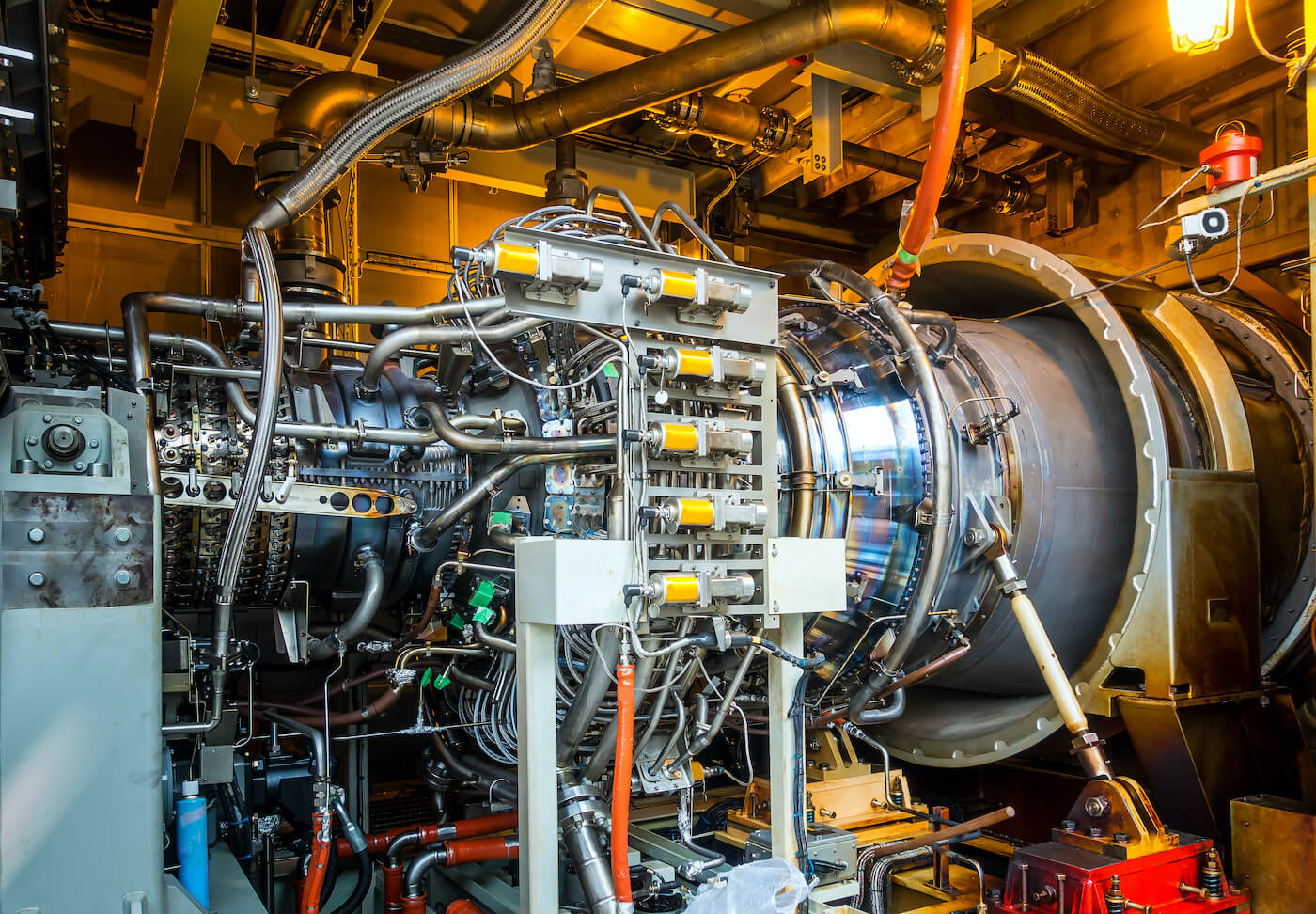

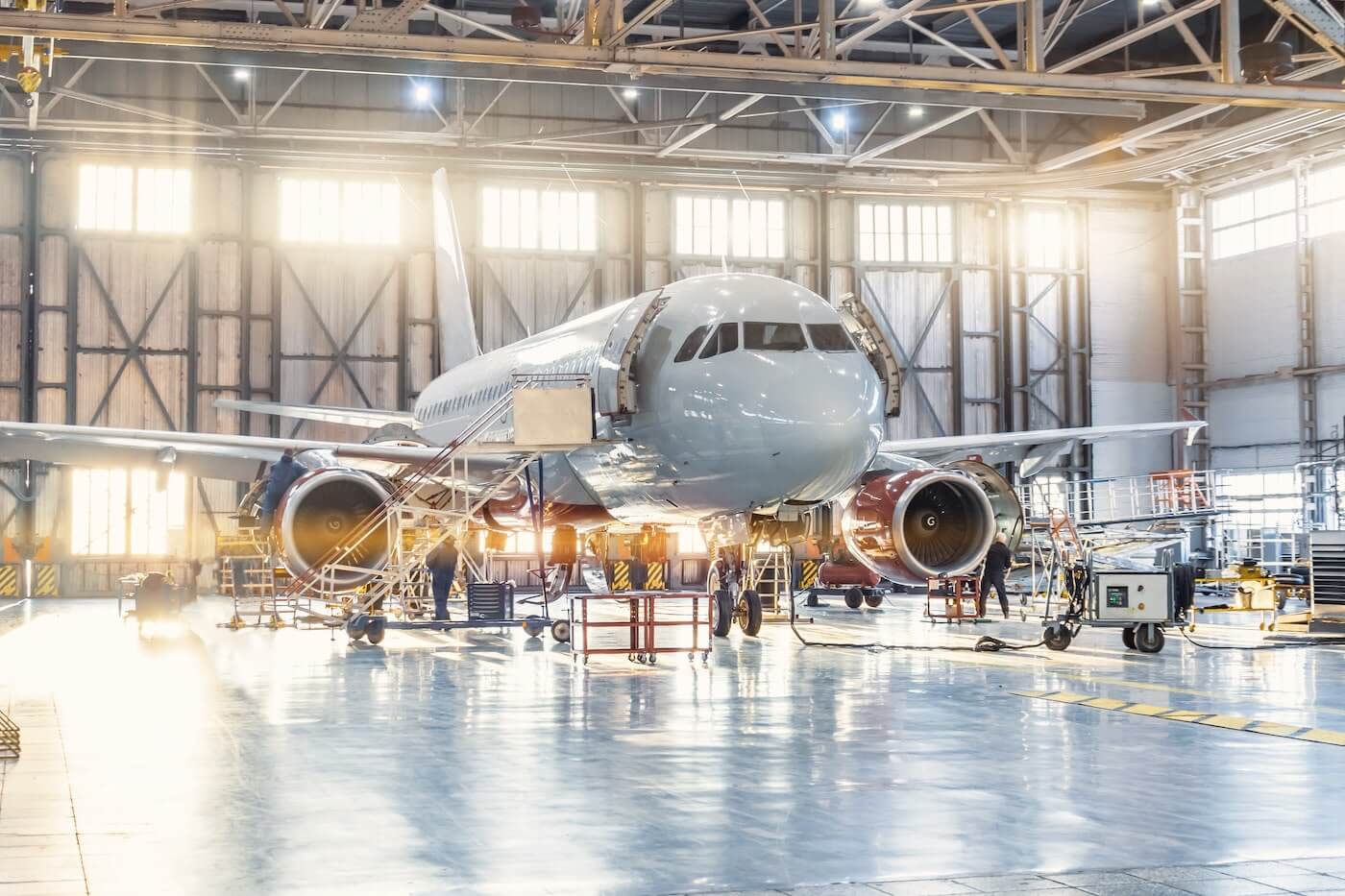

The most advanced ultraviolet flame detector on the market, Omniguard® model 660 was designed to function in the most challenging environments, with the capability to operate at extremely high temperatures (125°C) and a response time of 15 milliseconds. Typical applications for the Omniguard® 660 model are turbine enclosures, powerplants, compressor stations, LPG failities, LNG facilities, and hangars.


DOWNLOAD
DATA SHEET


Model  860 - UV/IR flame detector

By combining ultraviolet and infrared sensors with micro-circuit technology, the highest possible levels of sensitivity and reliability have been achieved. The model 860 detector employs a highly sensitive, solar blind, ultraviolet sensor, along with its narrow band infrared (thermopile) sensor to ensure unbeatable performance. The Omniguard® Model 860 is capable of detecting various hydrocarbon fuel fires such as aviation fuel, various solvents, methane, propane, crude oil, and many others.


DOWNLOAD
DATA SHEET


Model 760 - Multi-spectrum IR flame detector

Model 760 is the most advanced multi-spectrum IR5 flame detector in today's market. In a breakthrough technological advance, the model 760 senses infrared radiation in five discreet infrared wavelengths. The Omniguard® model 760 is capable of detecting various hydrocarbon fuel fires such as aviation fuel, various solvents, methane, propane, crude oil, and many others. The Model 760 also provides detection for hydrogen fires.


DOWNLOAD
DATA SHEET


ACCESSORIES FOR FLAME DETECTORS


Swivel mount for all Aluminum 660/760/860 Flame detectors
Material: Stainless Steel 304

Part number: 20856


DOWNLOAD
DATA SHEET


Swivel mount for all Stainless Steel 660/760/860 Flame detectors
Material: Stainless Steel 316
Part number: 24784


DOWNLOAD
DATA SHEET


Pole mount 2" for Swivel mount 20856
Material: Stainless Steel 316L

Part number: 26803




Pole mount 2" for Swivel mount 24784
Material: Stainless Steel 316
Part number: 26807




Weather shield for all 660/860 Flame detectors
Material: Stainless Steel 316L
Part number: 23546


DOWNLOAD
DATA SHEET


Weather shield for all 760 Flame detectors
Material: Stainless Steel 316L
Part Number: 27976


DOWNLOAD
DATA SHEET


Air shield for all 660/860 Flame detectors
Material: Delrin, Sintered Brass
Part Number: 8001023


DOWNLOAD
DATA SHEET


Air shield for all 660 High-temp Flame detectors
Material: Aluminum, Sintered Brass
Part Number: 26489


DOWNLOAD
DATA SHEET


Air shield for all 760 Flame detectors
Material: Delrin, Sintered Brass
Part Number: 19797


DOWNLOAD
DATA SHEET


Test Gun for all 660 Flame detectors
115VAC, USA, Canada
Part number: 43808-2




Test Gun for all 660 Flame Detectors
100-240VAC
Part number: 43808-3




Test Gun for all 660/860 Flame Detectors
Part number: 540




Test Gun for all 660/760/860 Flame Detectors
Part number: 545



  • Certifications and approvals

    Omniguard's Flame detectors are available with the following certifications and approvals:





      PESO, ECAS-Ex


    MODEL 660 - UV FLAME DETECTOR

    FM Approval
    FM Project ID. 3013284, Class 3260

    CSA
    Certificate: 70006476

    Safety Integrity Level (SIL)
    Certificate: Force technology CoC no. 120-24307-C3

    ATEX/IECEX/UKEx
    Certificate: IECEx_LCIE_13.0056X_2

    Certificate: LCIE 13 ATEX 3071 X
    Certificate: UL22UKEX2313X

    ECAS-Ex
    Certificate no. 22-09-22015/Q22-08-048007/NB0010



    MODEL 860 - UV/IR FLAME DETECTOR

    FM Approval
    FM Project ID. 3013284, Class 3260

    CSA
    Certificate: 70006476

    Safety Integrity Level (SIL)
    Certificate: Force technology CoC no. 120-24307-C1

    ATEX/IECEX/UKEx
    Certificate: IECEx_LCIE_13.0056X_2
    Certificate: LCIE 13 ATEX 3071 X
    Certificate: UL22UKEX2313X

    ECAS-Ex
    Certificate no. 22-09-22015/Q22-08-048007/NB0010


    MODEL 760 - MULTI-SPECTRUM IR FLAME DETECTOR

    FM Approval
    FM Project ID. 3021440, Class 3260

    CSA
    Certificate: 70006477

    Safety Integrity Level (SIL)
    Certificate: Force technology CoC no. 120-24307-C2

    ATEX/IECEX/UKEx
    Certificate: IECEx_LCIE_13.0054X_2

    Certificate: LCIE 13 ATEX 3070 X
    Certificate: UL22UKEX2314X

    ECAS-Ex
    Certificate no. 22-09-22015/Q22-08-048007/NB0010
